Choosing whether to keep, replace, or upgrade one of these circuits isn't just a paperwork decision. It affects bandwidth, voice quality, reliability, and how much you're paying per megabit. A T1 offers 1.544 Mbps, while a T3 aggregates dozens of T1-equivalent channels into roughly 45 Mbps. Both are legacy technologies now, and both are increasingly being retired by major carriers.
This article breaks down the technical specs, real use cases, and — most importantly — whether fiber, Ethernet, or dedicated internet access (DIA) makes more sense for your business today.
TL;DR
- T1 delivers 1.544 Mbps symmetrically across 24 channels; historically used for voice (PBX) and data.
- T3 combines roughly 28 T1-equivalent channels for around 45 Mbps of aggregate capacity.
- Choose based on bandwidth need, legacy gear, location, and modern alternatives (fiber, Ethernet).
- Carriers are sunsetting T1/T3, so migration planning is urgent for businesses still on them.

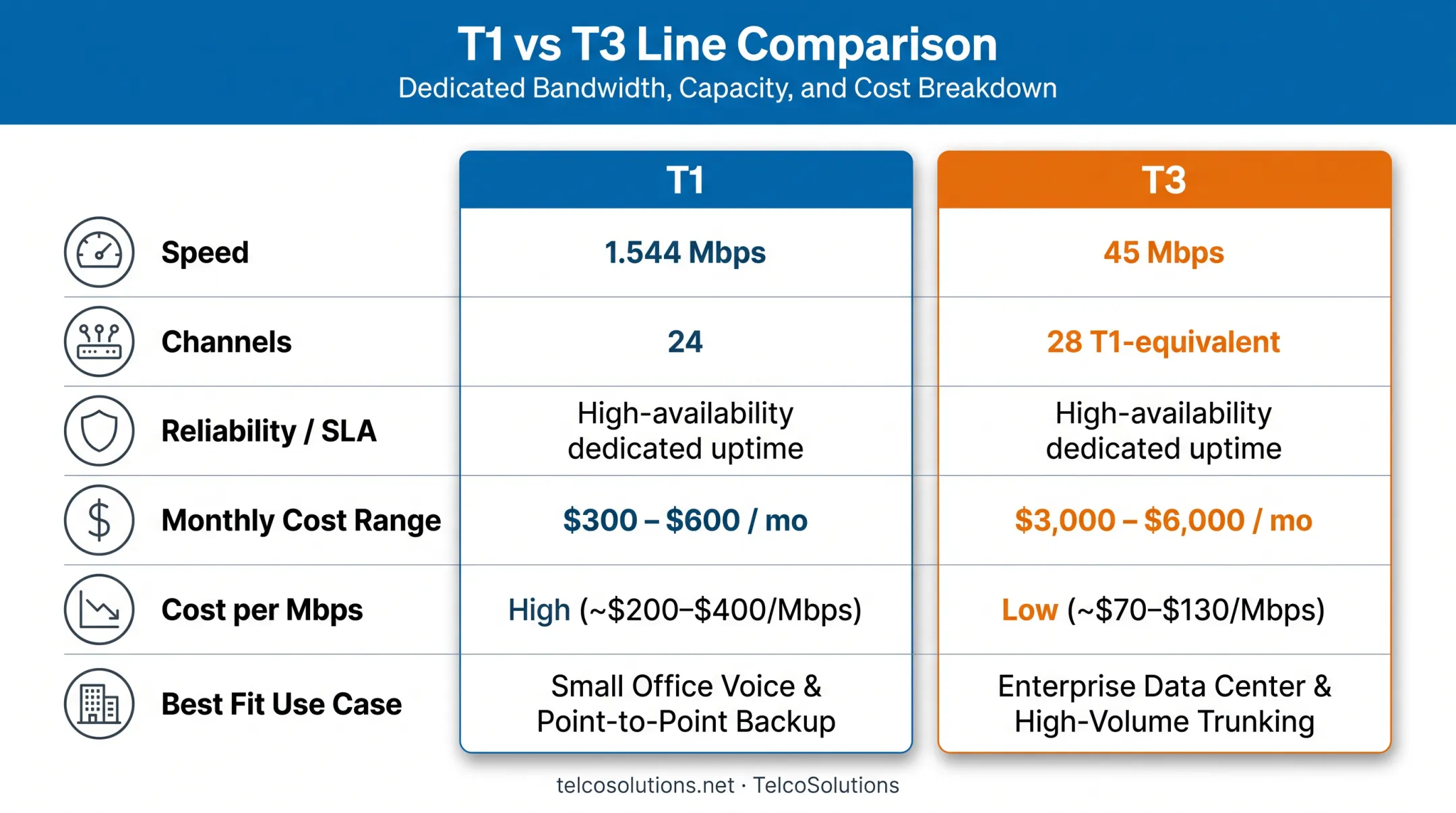

T1 vs T3: Quick Comparison
Speed, Capacity, and Channel Structure
T1 (DS1):
- Runs at 1.544 Mbps total transmission rate
- 24 channels at 64 Kbps each (1.536 Mbps payload; 8 Kbps framing)
- Symmetrical — upload and download speeds are identical
- Can be channelized (e.g., 12 channels for PBX voice, 12 for data) or run unchannelized
T3 (DS3):
- Delivers about 45 Mbps by combining 28 T1-equivalent channels
- Also symmetrical, designed for higher-demand enterprise environments
- Framing overhead means usable payload is slightly under the headline 45 Mbps
Business and Operational Factors
| Factor | T1 | T3 |
|---|---|---|
| Reliability | Often 99.9%+ SLA uptime | Similar SLA model; depends on provider |
| Typical monthly cost | $300–$800+ | Higher; needs specialized termination gear |
| Cost per Mbps | Roughly $194–$518+ | Lower per Mbps than T1; still far above fiber |
| Best fit | Legacy voice, low-bandwidth, remote sites | Larger legacy sites with heavy concurrent demand |
Actual reliability still depends on your provider and the SLA you sign, not the circuit type alone.
Use Cases and Availability
- T1 mostly survives in isolated rural areas without fiber, cable, or wireless, or on old PBX systems.
- T3 historically served large offices, call centers, and data-heavy sites that aggregated many T1-equivalent circuits.
Both are being phased out. Before renewing either, compare pricing and availability against fiber or Ethernet.
What Is a T1 Line?

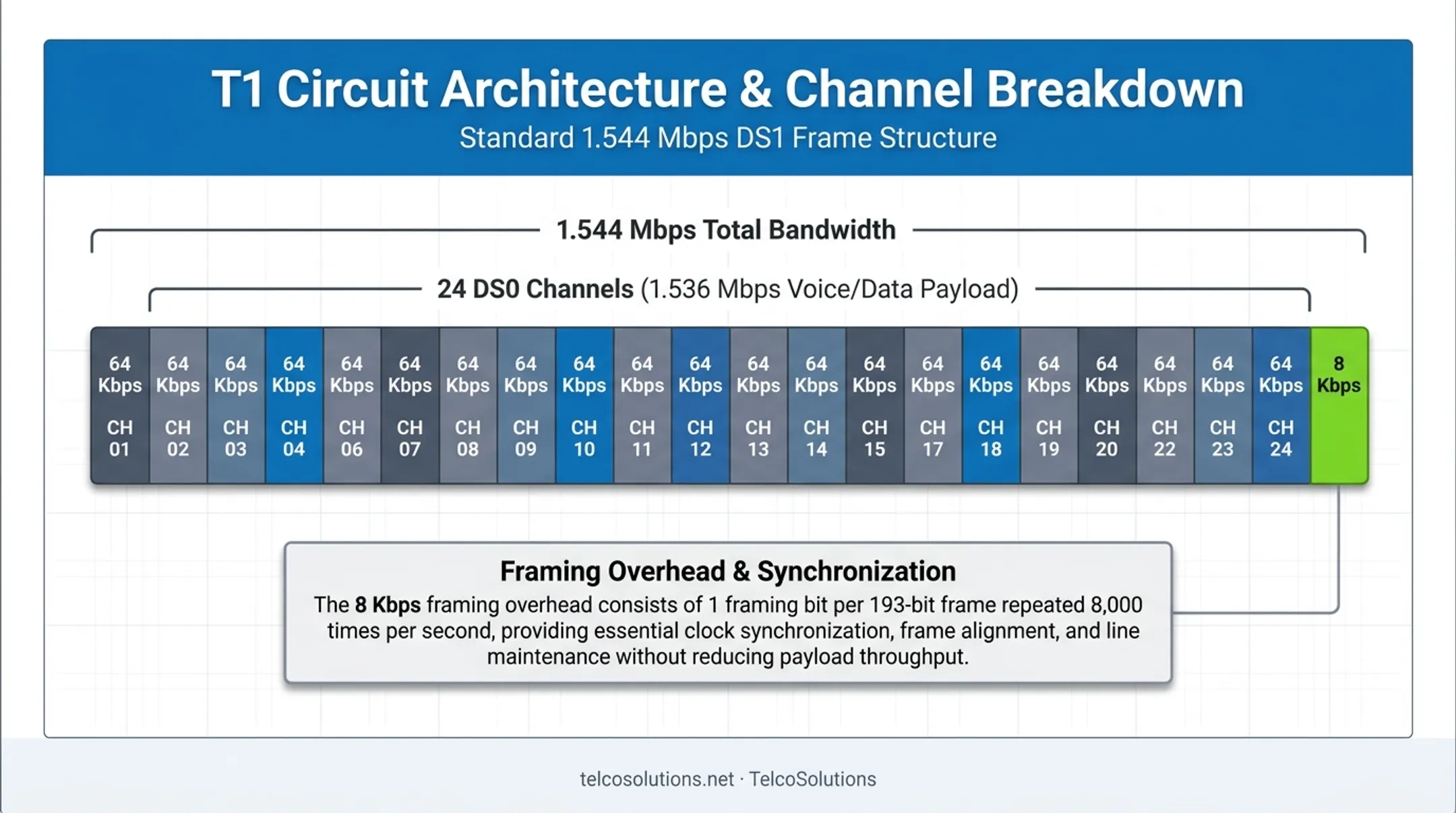

Technically, DS1 refers to the 1.544 Mbps digital signal itself, while T1 describes the physical carrier once that signal is channelized into 24 voice/data slots. In everyday business conversation, though, people use the terms interchangeably.
Time-Division Multiplexing assigns each of the 24 channels a repeating time slot on the same circuit. Each channel carries 64 Kbps. Multiply that out and you get 1.536 Mbps, not 1.544 Mbps. The missing 8 Kbps goes toward framing, which keeps the whole signal synchronized.
For decades, T1 was considered rock-solid:
- Dedicated access with no shared bandwidth from other tenants or businesses
- Symmetrical speeds so upload matched download
- Predictable performance with the same throughput at 2 a.m. as at 2 p.m.
- Voice and data flexibility that banks and hospitals used for transactions and medical data
"Dedicated" does not automatically mean guaranteed uptime or fast repair times. Review your provider's SLA, demarcation point, and monitoring commitments; the circuit type alone won't tell you what you're actually getting.
The Catch Today
A single T1 can't exceed its 1.544 Mbps cap. Even bonding two T1s together only nets around 3 Mbps, nowhere close to what modern video conferencing, cloud software, or file backups demand. Aging equipment and carriers actively retiring the infrastructure make T1 a last-resort option rather than a first choice.
Use Cases of T1
T1 still shows up in a few narrow scenarios:
- Legacy PBX systems that are expensive or disruptive to replace immediately
- Remote sites where fiber, cable, and wireless simply aren't available
- Specialized institutional systems in some government or older enterprise setups
Businesses sometimes keep an existing T1 temporarily due to contract obligations or the operational risk of migrating voice and data systems simultaneously. One documented example: San Mateo County worked with RavnTech to convert a dated T1 fire-radio system to Ethernet over fiber across 38 sites, showing that T1 replacement is often a distributed infrastructure project, not just a speed upgrade.
What Is a T3 Line?

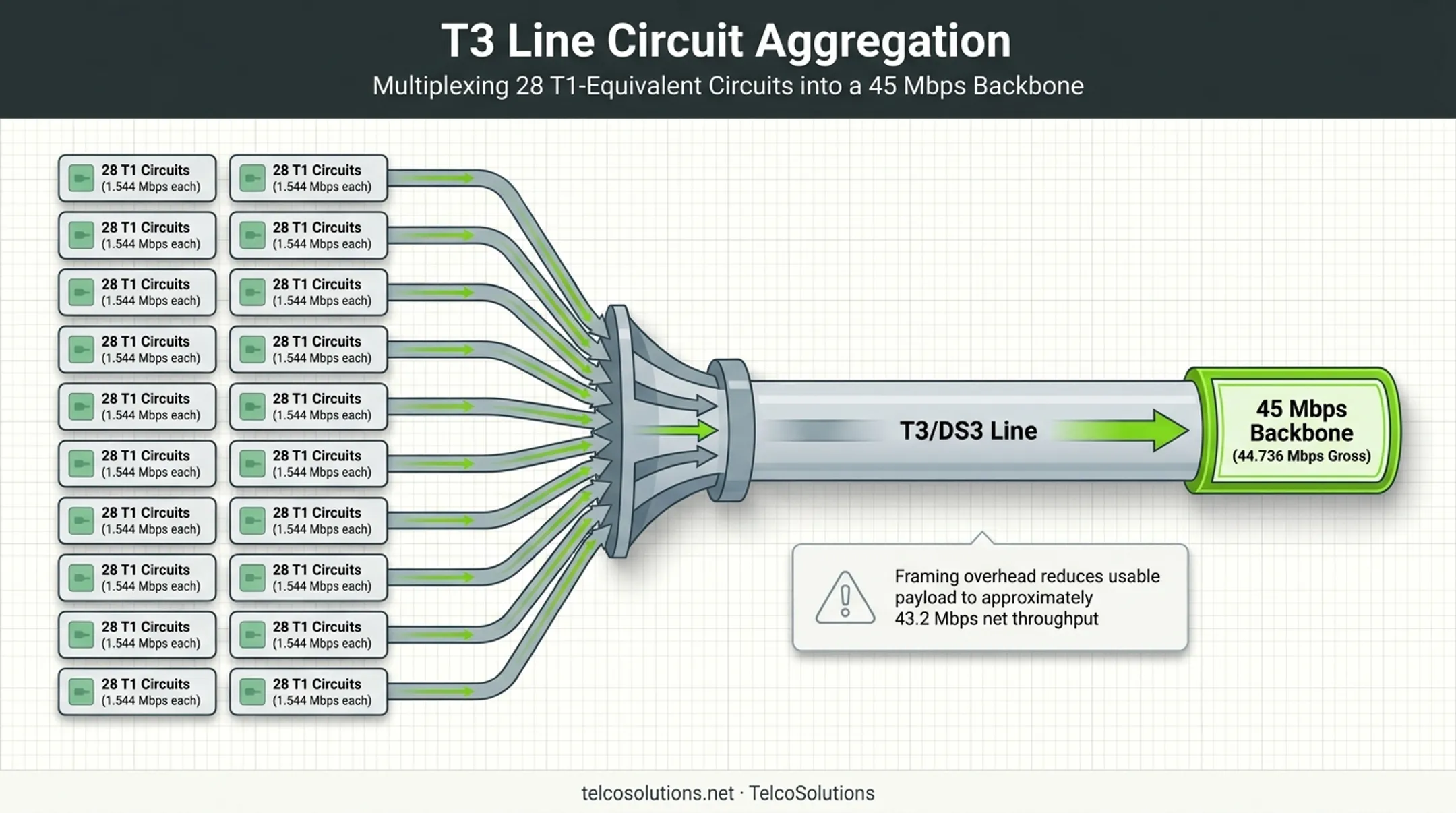

A T3, commonly associated with DS3, is a higher-capacity T-carrier service built by combining roughly 28 T1-equivalent circuits into one connection delivering approximately 45 Mbps. It works as an aggregation layer: many smaller circuits bundled onto one high-speed backbone, not a wholly separate technology.
That multiplexing relationship matters for one practical reason: the usable payload on a T3 can differ from the advertised line rate because of framing and signaling overhead. Don't assume every megabit advertised translates directly into application throughput.
What T3 Was Good For
- Dedicated, symmetrical connectivity at a much larger scale than T1
- High-volume voice and data for larger offices
- Site interconnection between data centers or multiple locations
- Bandwidth-heavy apps such as video conferencing and surveillance feeds
Where T3 Falls Short Today
- Premium pricing compared to modern alternatives
- Specialized termination equipment required at both ends
- Availability limited to areas with aging carrier infrastructure already in place
- Poor scalability — once you outgrow 45 Mbps, there's no simple "step up" the way there is with fiber
Use Cases of T3
T3 lines historically served:
- Large offices and call centers with heavy concurrent voice/data traffic
- Universities and research organizations transferring large datasets
- Data-heavy facilities that hadn't yet migrated to packet-based networking
Fractional T3 service sometimes addressed capacity needs for organizations that didn't require the full 45 Mbps. Compared with modern Ethernet or fiber, even fractional T3 usually costs more per Mbps and offers far less room to scale later.
T1 vs T3: What Is Better?
Neither wins by default. The right choice comes down to a specific decision framework:
- Required bandwidth — how much do you need today, and in two years?
- Users and applications — cloud usage, video, and backup traffic add up fast
- Voice dependency — are you still running a legacy PBX that needs specific channel support?
- Redundancy and SLA needs — what does downtime cost your business?
- Installation feasibility — is fiber even available at your location?
- Total cost of ownership — not just the monthly bill, but equipment, maintenance, and contract terms
Before You Renew Anything
Document these first:
- Equipment currently connected to the circuit
- Legacy PBX or data dependencies riding on it
- Peak utilization over the past six months
- Outage history and its business impact
- Current monthly charges
- What downtime actually costs you per hour
When T1 or T3 Might Still Make Sense
T1 could be defensible if:
- You're supporting a legacy system temporarily during a planned migration
- You're at a site where nothing newer is available
- Bandwidth demand is genuinely minimal
T3 made sense historically if:
- You had a large legacy environment with high concurrent demand and no newer alternative
In either case, validate carrier support and get a firm migration timeline before signing another renewal.

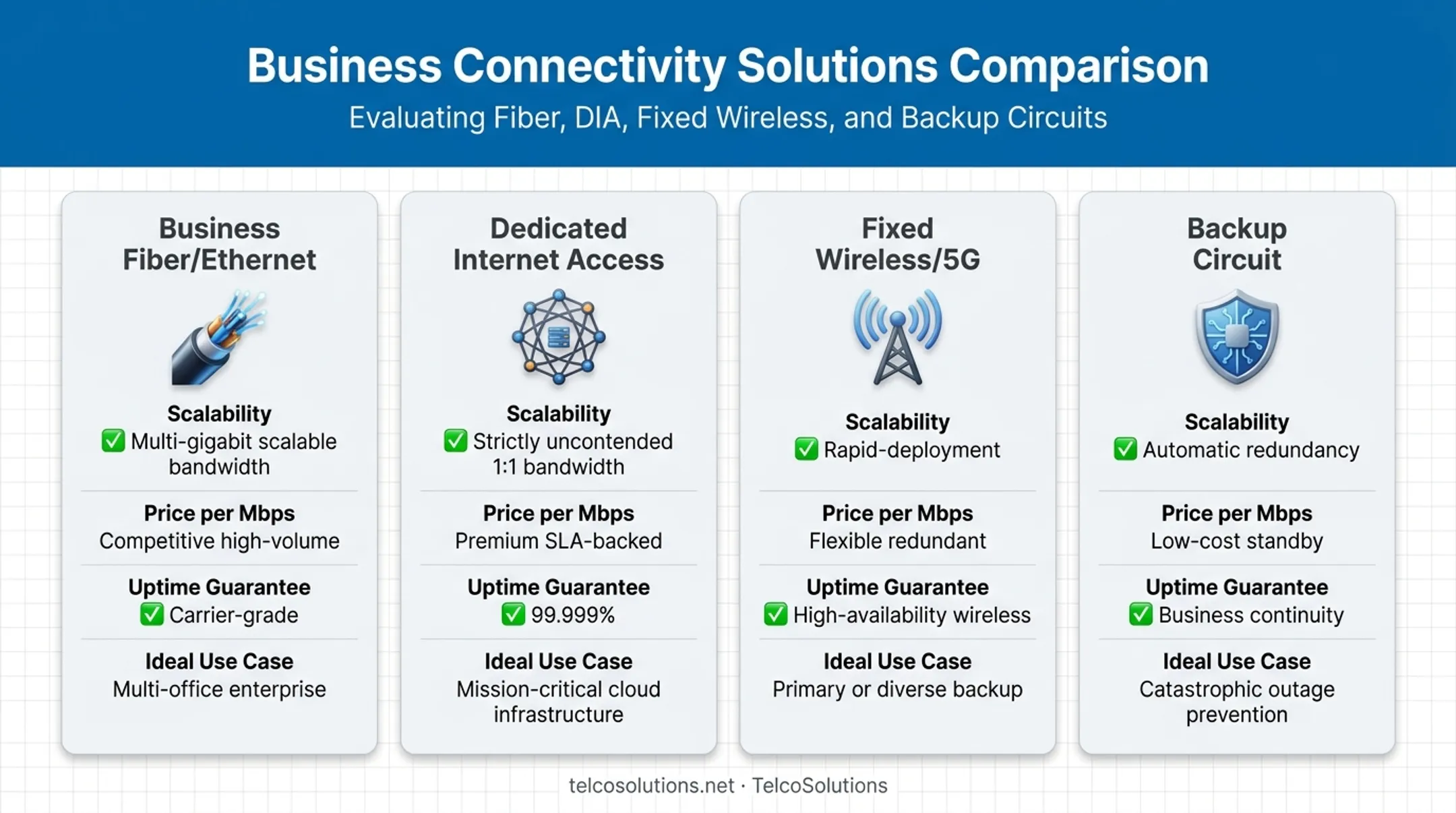

When Neither Is the Right Answer
For most businesses today, a modern alternative wins:
- Business fiber or Ethernet — scalable from 100 Mbps to 10 Gbps+, often priced at $0.05–$0.70 per Mbps compared to T1's $194–$518+ per Mbps
- Dedicated Internet Access (DIA) — private, uncontested connections with symmetrical speeds and uptime guarantees often at 99.99% or higher
- Fixed wireless or 5G — useful for redundancy or locations where trenching fiber is impractical
- A separate backup circuit — for genuine resilience, regardless of your primary connection type
TelcoSolutions works with 300+ carriers to match these options to your real usage data—so you compare on need, not guesswork.
Real-World Example
A regional retail chain running 20 stores on aging T1 and T3 circuits hit a familiar wall: cloud POS systems needed more bandwidth than the old lines could give. A contract renewal was also coming due, which risked locking them into another term on outdated technology.
The trigger was practical: their carrier issued a retirement notice, so the decision could not wait.
They replaced the legacy circuits with a simple dual-path design at each store:
- Business fiber as the primary connection
- Fixed wireless or 5G as backup if the fiber path failed
That mix delivered modern bandwidth without giving up redundancy.
The takeaway: Multi-location businesses with rising cloud or POS demand are strong fits for fiber plus wireless backup—not another renewal on legacy T1 or T3 circuits.
If your business is facing a similar renewal deadline or retirement notice, TelcoSolutions can compare carrier options, coordinate implementation, and handle billing so you're not managing multiple vendor relationships alone.
Conclusion
T1 and T3 still fit some niches. The better choice depends on your traffic patterns, legacy equipment, location, and upgrade timeline. Circuits that once defined dedicated business connectivity are now a stopgap for most organizations.
Before you renew another legacy circuit, compare its real cost and risk with the scalability and support you get from fiber, Ethernet, or DIA. In most cases, the math will not favor the older option.
If you are weighing quotes or planning a cutover, TelcoSolutions can help you source and compare options across 300+ providers so the decision matches your traffic and timeline.
Frequently Asked Questions
What is the difference between T1 and T3 lines?
T1 delivers 1.544 Mbps across 24 channels, while T3 aggregates roughly 28 T1-equivalent channels for about 45 Mbps. Both are legacy dedicated circuits, and actual performance depends heavily on your provider and SLA.
Which is better: T1 or T3?
T3 offers far more capacity, but "better" depends on your user count, applications, budget, and location. For most businesses today, neither beats a modern fiber or Ethernet alternative.
How many T1 lines make up a T3 line?
A T3 combines approximately 28 T1-equivalent channels. That's the nominal bundled capacity; actual usable payload is slightly lower due to framing overhead.
Are T1 and T3 lines still used today?
Existing circuits may remain in legacy voice systems, remote locations, or specialized institutional setups. New deployments almost always use fiber, Ethernet, dedicated internet access (DIA), or fixed wireless instead.
What should replace a T1 or T3 line?
Business fiber, Ethernet, dedicated internet access, fixed wireless, or 5G are the common replacements. The right pick depends on your bandwidth needs, budget, and location.
How much does a T1 or T3 line cost?
T1 typically runs $300–$800+ per month, or roughly $194–$518+ per Mbps, far higher than fiber's $0.05–$0.70 per Mbps. Pricing varies by location, carrier, and contract terms, so compare total cost per Mbps rather than sticker price alone.
